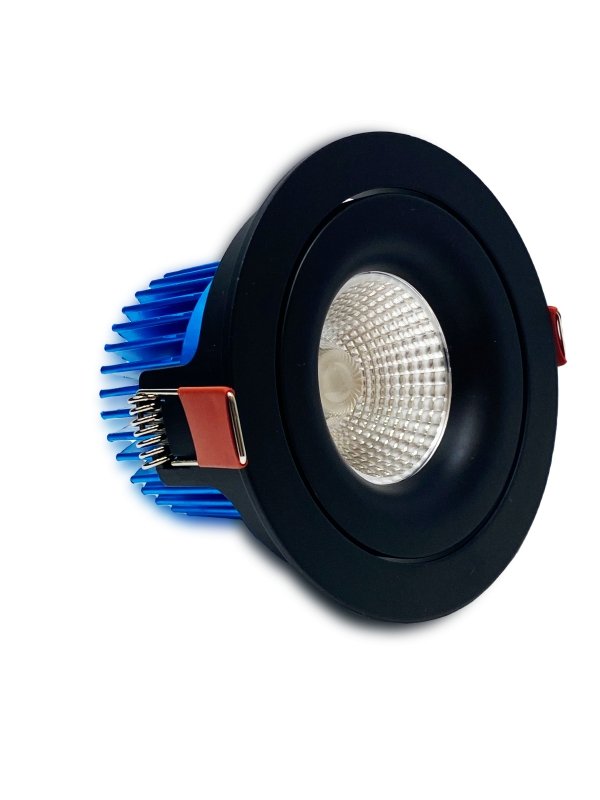

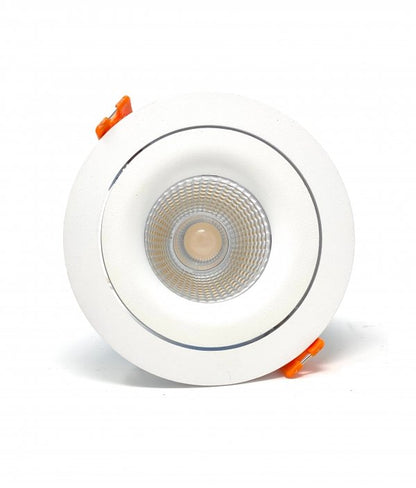

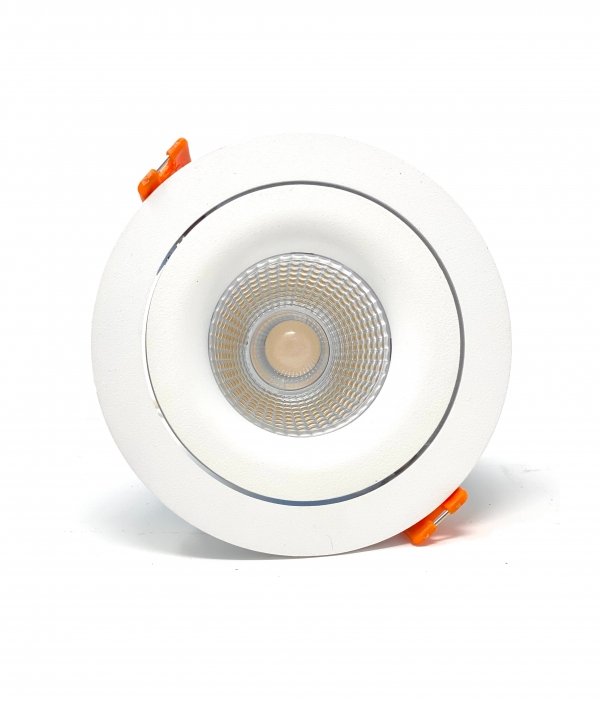

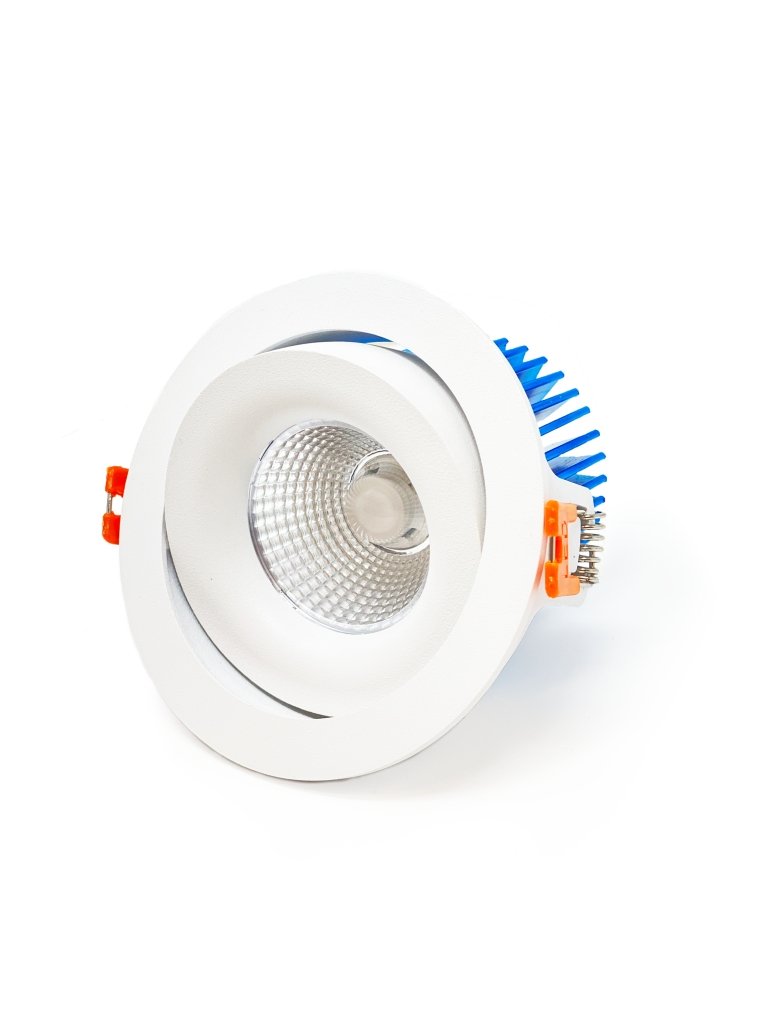

RAYHIL RAD35 12W 3.5" Recessed Gimbal LED Downlight Selectable CCT Description
3.5" RECESSED LED DOWNLIGHT
- Air-tight and wet location approved
- Type ic rated - approved for direct contact with insulation
- Spring loaded mounting clips
- Selectable CCT (30K, 35K, 40K)
- Quick connect wire allows for efficient installation
- Isolated driver inside junction box
- New construction plate available (NCH350*)
- Round/Square
- Optional Emergency Backup
- 5 year warranty
*
Click Here for Construction Plates
Square Dimensions
| Length (in.) |
4.40" |
| Width (in.)
|
4.40" |
| Height (in.)
|
3.75" |
|

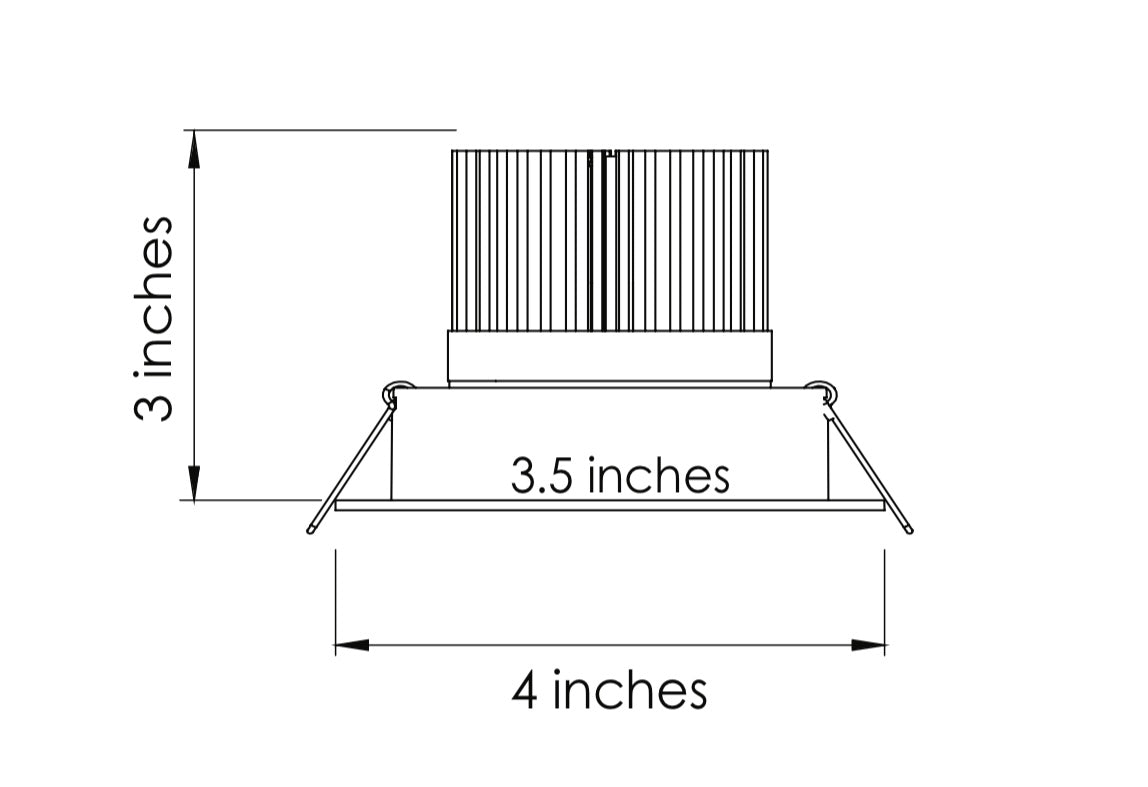

Round Dimensions
| Circ. (in.) |
4.40" |
| Height (in.)
|
3.75" |
|
Spec Sheet
Info
| Wattage |
12W |
| Lumen |
850lm |
| Efficacy(LPW) |
>70 lm/W |
| Color Temp |
30K, 35K, 40K |
| CRI |
>90 |
| Dimming |
Triac/ 0-10V |
| Lamp Life |
50,000hr |
| Environment |
IP65 Wet Location
|
