Concealed Barrel Hinge

Concealed Barrel Hinge: Seamless Integration with Timeless Appeal

Our concealed barrel hinge delivers a hidden, flush-mount connection for clean lines and professional results. Crafted in brass for durability and smooth action, it’s ideal for cabinets, keepsake boxes, small doors, and fine furniture where visible hardware would distract from the design.

Key Features

• Material: Brass
• Concealed, flush-mount design for a clean, hardware-free look
• Set-screw wedge expands inside the bore for a tight, secure fit
• Suitable for cabinets, furniture panels, and small interior doors
• Available in four sizes to match common panel thicknesses

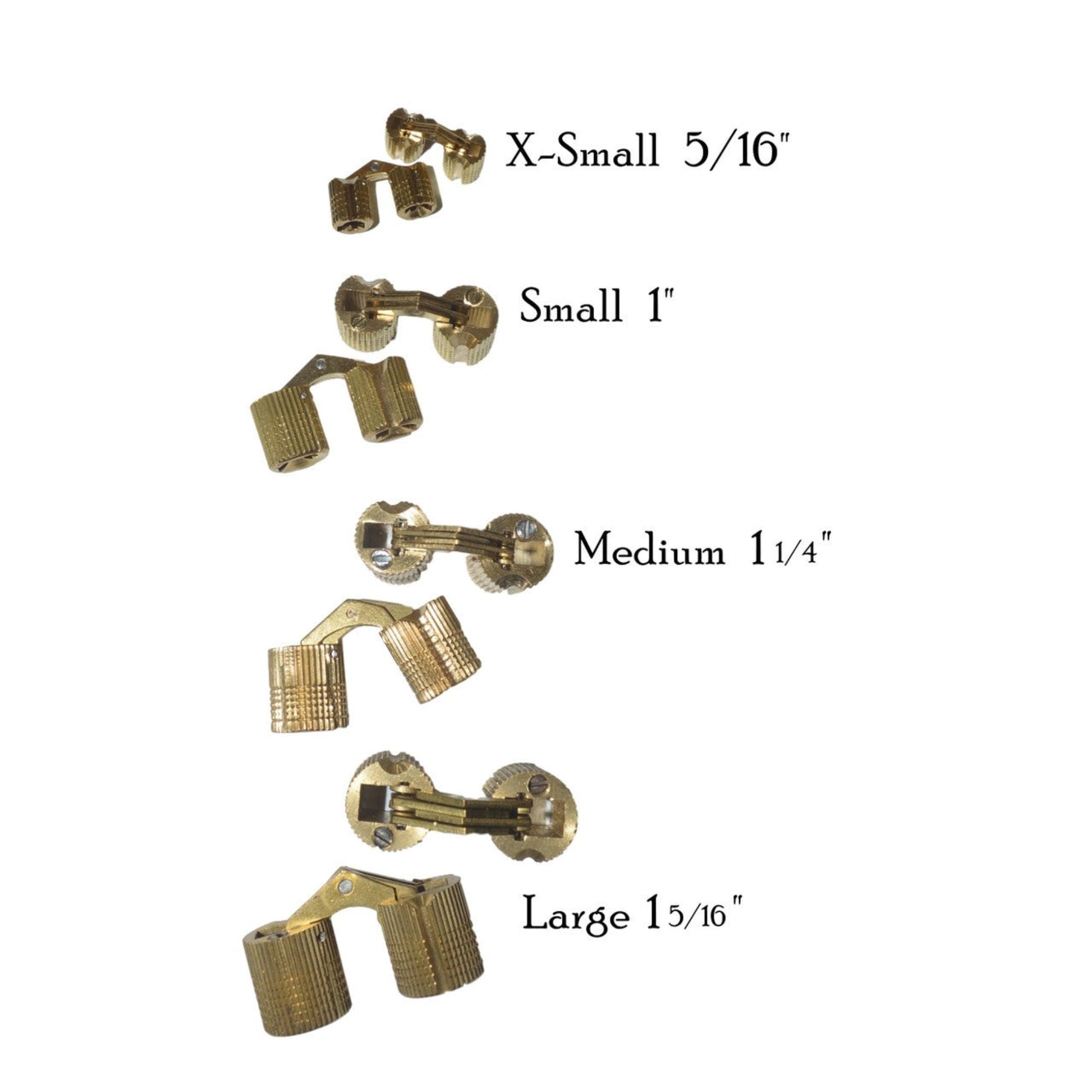

Sizes & Dimensions (closed)

• Extra-Small: 5/16" long × 3/8" diameter — very small, light-duty applications
• Small: 1" long × 3/8" diameter — recommended for ~7/16" thick wood
• Medium: 1-1/4" long × 9/16" diameter — recommended for ~3/4" thick wood
• Large: 1-5/16" long × 5/8" diameter — recommended for ~7/8" thick wood

Installation Overview

1. Mark hinge locations on the mating edges for proper alignment and clearance.
2. Drill the specified diameter hole to the correct depth in each piece.
3. Insert the hinge; tighten the set screw to expand the wedge and lock in place.
4. Test movement and adjust alignment before final assembly.

Use Cases

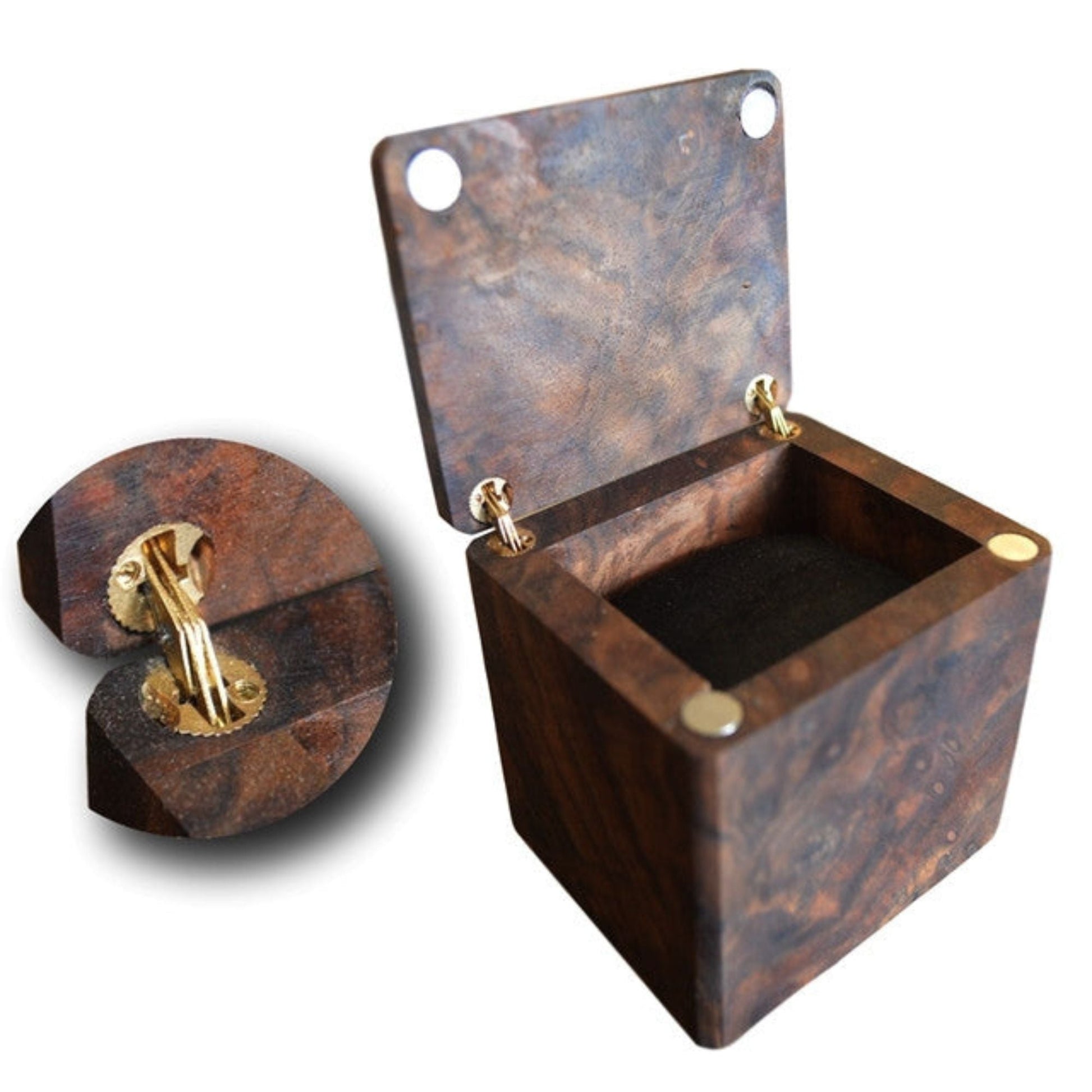

• Hidden hinges for cabinet doors and furniture lids
• Presentation and jewelry boxes where aesthetics are critical
• Restoration projects requiring discreet hardware
